Camera Lucid Triton TRI004S-C
DescriptionFeatures:

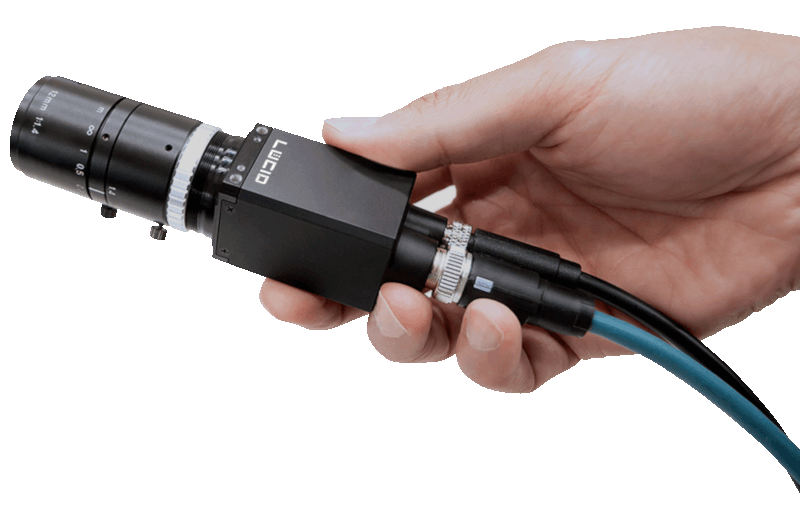

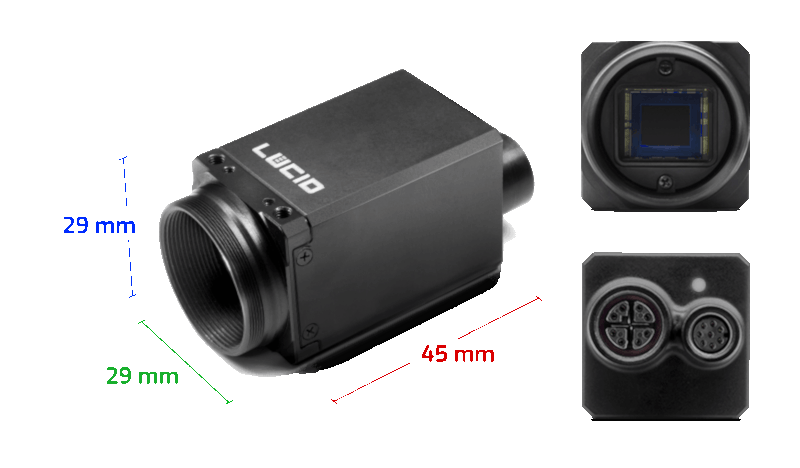

Beyond Small and Light The Triton camera pushes the standard 29 x 29 mm machine vision camera to a new level. The Triton’s electronics are housed in a sealed two-piece aluminum case secured by 4 M2 screws. The M12 connector for Ethernet and M8 connector for GPIO provides a robust and sturdy connection resistant to shock and vibration. For even more protection, an optional IP67 lens tube can be attached for dust proof and water resistant operation, eliminating the need for an external case. The camera has a wide operating temperature range from -20°C to 55°C ambient. At only 67 grams and 29 x 29 mm, the Triton is an easy fit for reliable operation in any environment.
Gigabit Ethernet The reliable and versatile interface for industrial use.

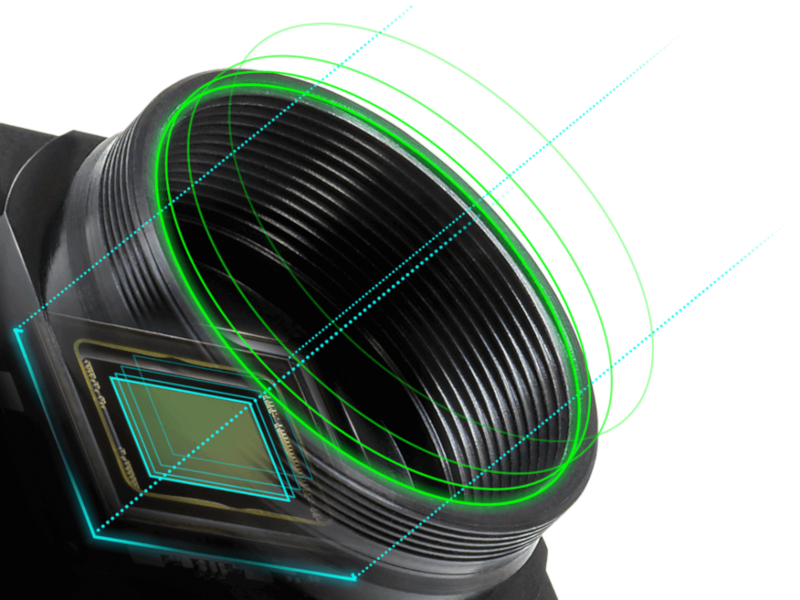

Active Sensor Alignment All Triton cameras are actively aligned to minimize image sensor tilt, image sensor rotation, and to place the center of the image sensor at the lens optical axis. The six degrees of freedom manufacturing process accurately and precisely positions the image sensor to the lens mount so that images are sharp and crisp, even in the corners. Learn more about how the Active Sensor Alignment manufacturing process works in Lucid tech brief.

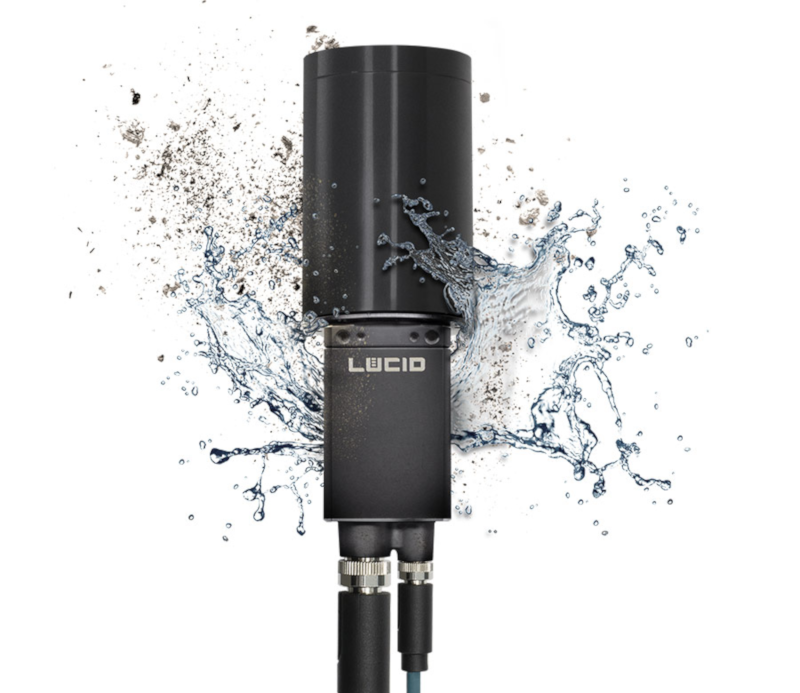

IP67 Protection The Ingress Protection (IP) rating system is a global standard of rating levels of protection from solid objects and liquids. With the lens tube attached, the IP67 Triton offers protection from solid particles such as dust, dirt and sand. It also offers water ingress protection of up to 1 meter submersion for 30 minutes. Employ high quality imaging under harsh environments while providing long-term camera durability without additional bulky enclosures.

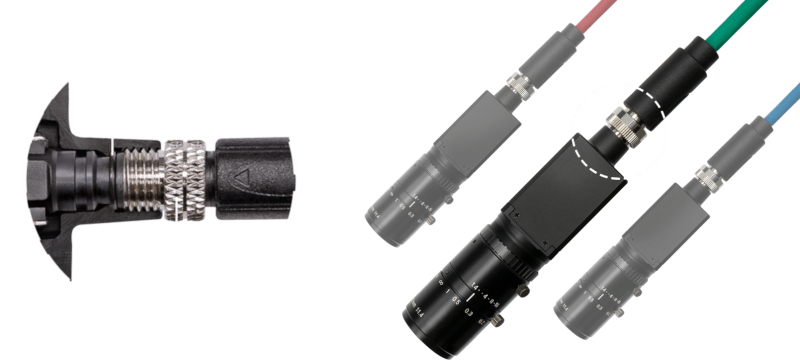

M12 and M8 Connectors The M12 Ethernet and M8 GPIO connectors provide robust and secure cable connection with ingress protection against dirt, dust, and water. The M12 Ethernet connector is standardized as IEC 61076-2-109 and is included in the GigE Vision standard. The secure 8 position M8 GPIO connector is standardized to IEC 61076-2-104 with an opto-coupled input line, an opto-coupled output line, and two bidirectional lines. Designed for error free operation in vibration environments and shielded to protect against electrical interference, the robust M12 and M8 ports make the Triton ideal industrial, automotive, process control, food and beverage, and medical applications.

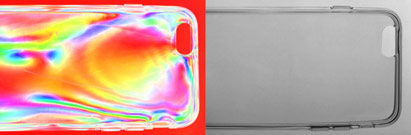

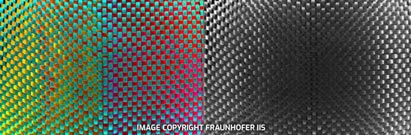

Sony Pregius CMOS Sensors Consider today’s most challenging, highly demanding imaging applications with unsurpassed imaging quality running 24/7. The Triton machine vision camera delivers the incredible quality and performance of Sony Pregius™ sensors – the industry leading global shutter CMOS sensor. Sony’s global shutter technology captures crystal clear, non-distorted images with exceptionally low read noise and very high dynamic range. Sony’s Pregius CMOS sensors used in the Triton cameras provide the imaging quality needed for today’s most challenging tasks. Uncover Hidden Material Properties with Polarization See beyond visible light with the Triton camera featuring Sony’s IMX250MZR/MYR CMOS polarized sensors with Polarsens technology. The 5 MP Triton models TRI050S-P/Q provide on-camera processing using the four directional filters and outputs both the intensity and polarized angle of each image pixel. Using the Triton polarized camera, polarization can now be a compact and cost-effective way to solve imaging challenges.
Arena SDK Welcome to the powerful software development kit called Arena. The Arena SDK is designed from the ground up to leverage the latest in industry standards and computer technology. It works fast with less calls to functions and is simpler to use thanks to its modern GUI based on the GenICam standard.
Technical specification
Documents triton-tri004s.pdf - English datasheet triton.pdf - English datasheet of Lucid Triton family lucid-catalog-2018.pdf - English catalog of Lucid products accessories.pdf - English datasheet of Lucid accessoriesSoftware |
|
