Camera Lucid Phoenix PHX004S-C

Camera Lucid Phoenix PHX004S-C

The world smallest industrial PoE Camera with color Sony IMX287 sensor and GigE Vision interface, which allows to capture high-quality images at 0.4 MP at 291 fps.

Rise above the competition with micro compact transformable GigE Vision Camera. The Phoenix machine vision camera delivers the incredible quality and performance of Sony Pregius™ sensors. The camera is transformable and individual board stacks can be unfolded to various degrees to best fit your application. The ix Industrial connector uses 70% less space compared to RJ45 sockets.



  • Resolution: 728 x 544 pixels (0.4 MP) in color.
  • Frames per second: 291 fps at full resolution.
  • Sensor: CMOS Global Shutter sensor Sony IMX287.
  • Video Interface: 1000BASE-T RJ45, PoE ix Industrial, PoE
  • Lens Mount: 1/2.9" C, NF, S-mount
  • Recording Features: Various recording features like region of interest (ROI) and sequence modes.

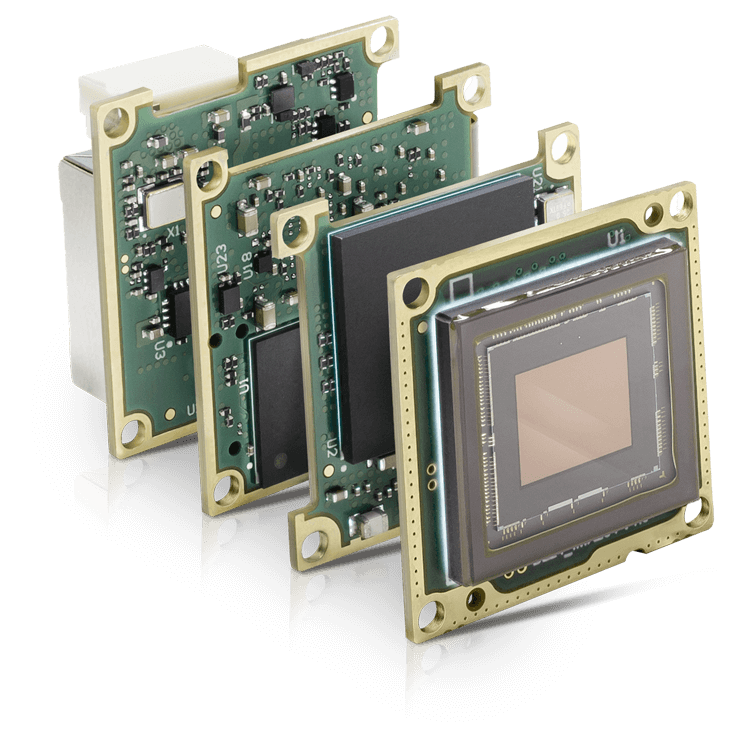

Sony Pregius CMOS Sensors

Consider today’s most challenging, highly demanding imaging applications with unsurpassed imaging quality running 24/7. The Phoenix machine vision camera delivers the incredible quality and performance of Sony Pregius™ sensors – the industry leading global shutter CMOS sensor. Sony’s global shutter technology captures crystal clear, non-distorted images with exceptionally low read noise and very high dynamic range. Sony’s Pregius CMOS sensors used in the Phoenix cameras provide the imaging quality needed for today’s most challenging tasks.

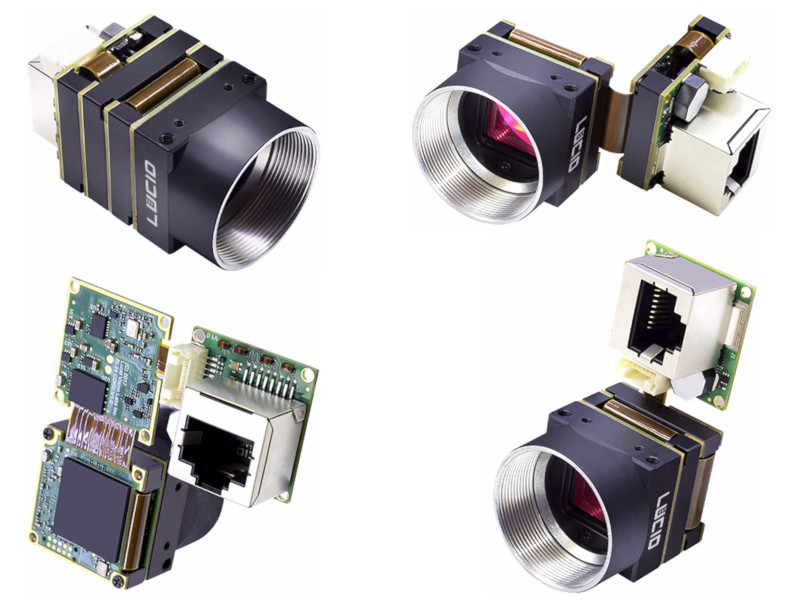

Flexible Freedom

The default shape of the Phoenix resembles a traditional camera shape. However, individual board stacks can be unfolded to various degrees to best fit your application. For example, use a 90° angle camera shape for corner mounting or even a 180° angle shape for the ultimate custom fit.


The Phoenix is the smallest camera in the GigE PoE market. The smallest Phoenix measures only 24 x 24 x 27.35 mm, takes up to 30% less PCB area than other board level cameras, and is up to 40% smaller than other cased cameras. Despite its compact size, it performs as a full featured cased camera.

Micro Compact

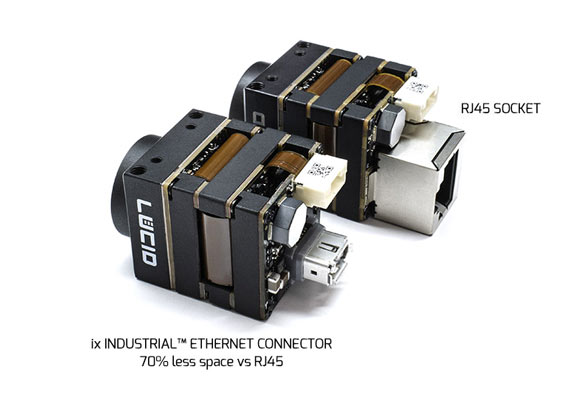

The ix Industrial connector uses 70% less space compared to RJ45 sockets. It provides high EMC immunity, active metal snap-in hooks, a locking force greater than 98 n, guarantee of 5,000 mating cycles, and railway EN 50155 specification compliance for shock and vibration resistance.

ix Industrial Connector

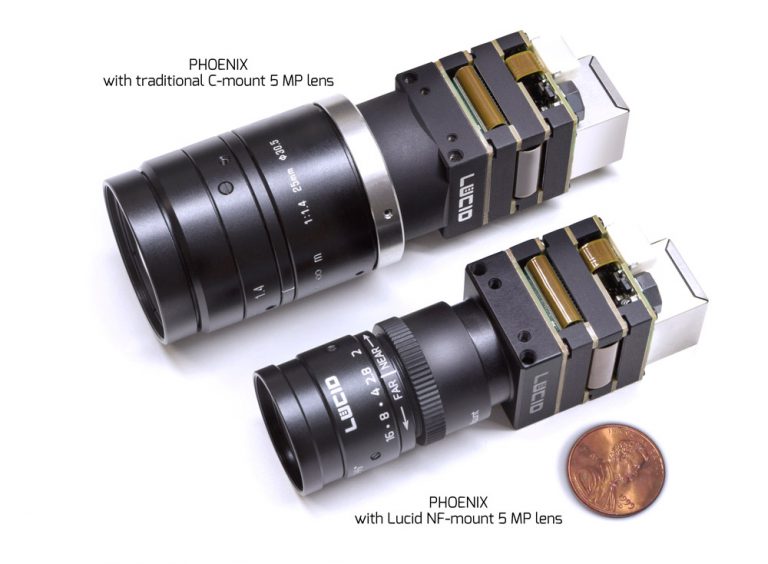

High Performance Compact NF-Mount 5 Megapixel Lens

The Phoenix is available with a NF-mount for additional space savings. When paired with LUCID’s 2/3” 5 megapixel rated NF-mount lenses it provides a 40% space reduction and up to 50% weight reduction while maintaining the same imaging performance as a standard C-mount lens. In addition, the Phoenix NF-mount models maintain the overall 24 x 24 mm cross section when using our NF-mount lens.

High Performance Compact NF-Mount 5 Megapixel Lens

Maximum Stability, 24/7 Reliability

Reliable camera technology can greatly improve the performance and lifespan of end designs and significantly decrease the amount of time lost to diagnosing, troubleshooting and repairing. To reduce these issues, the Phoenix camera is meticulously engineered to operate in demanding industrial environments. Before the cameras begin production, numerous prototypes are stress tested to their extremes for temperature, vibration and humidity tolerance. The unique, high-quality design allows the Phoenix camera to operate flawlessly in 55°C ambient air temperatures.

Fast Image Signal Processing (ISP) Pipeline

The powerful ISP doesn’t skip a beat in unlocking the full potential of the sensor. Lucid engineers have maximized the communication between the sensor, FPGA, firmware, and memory to breakthrough boundaries and provide you with a camera that works the way you expect it.

  • Enable Region of Interest (ROI), Binning or Decimation without hitting any limitations on higher frame rates.
  • Choose from multiple different Pixel Formats to suit your imaging workflow requirements.
  • Enable the Color Correction Matrix (CCM) for realistic color reproduction and achieve the same frame rates without any slow down.

Fast Image Signal Processing (ISP) Pipeline

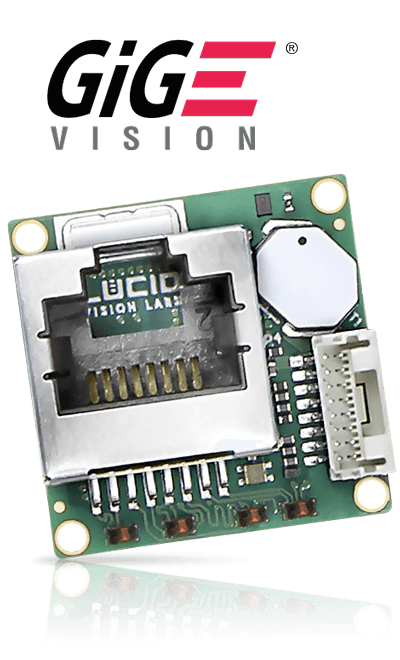

Hassle-Free Connectivity

Lucid recognizes the importance of hassle-free connectivity and integration with other components. The Phoenix camera is GigE Vision compliant and easily works with other 3rd party GigE Vision software. Lucid research has led us to design a high-speed GPIO for trigger and strobe, low latency GigE image transmission, and standards that implement network synchronization.

  • GigE Vision compliant for maximum 3rd party software compatibility.
  • The Power Over Ethernet (PoE) port simplifies power and data over one cable and is IEEE 802.3af compliant with proper power isolation.
  • The 8-pin GPIO includes both opto-isolated and non-isolated pins for high speed trigger and strobe.
  • Supports IEEE 1588 PTP for auto clock synchronization with other network devices.

Hassle-Free Connectivity

Arena SDK

Welcome to the powerful software development kit called Arena. The Arena SDK is designed from the ground up to leverage the latest in industry standards and computer technology. It works fast with less calls to functions and is simpler to use thanks to its modern GUI based on the GenICam standard.

  • Includes example code and a robust set of APIs.
  • Search for help topics in our easy-to-use HTML5 documentation
  • Arena UI toolkit for rapid development of custom GUIs
  • ArenaView GUI for viewing and acquiring images.

Micro Compact

Technical specification

Model name PHX004S-C
Product family Phoenix
Product type Area scan
Sensor name Sony IMX287
Sensor type CMOS
Sensor size (H x V), format 5.02 mm x 3.75 mm, 1/2.9"
Pixel size (H x V) 6.9 µm x 6.9 µm
Color/Mono Color
Resolution (H x V), MP 728 px x 544 px, 0.4 MP
Frame rate 291 fps
ADC 12 bit
Dynamic Range 74.13 dB
Shutter Global
Exposure Range 30 µs to 10 s
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
Inputs/Outputs 1 opto-isolated input, 1 opto-isolated output, 2 bi-directional
Image Buffer 128 MB
Lens Mount C, NF, S-mount
Interface 1000BASE-T RJ45, PoE ix Industrial, PoE
Machine Vision Standard GigE Vision v2.0
Power Requirements PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption (Maximum) 3.1W via PoE, 2.5W when powered externally
Housing Type Optional box
Dimensions (L x W x H) 24 mm x 24 mm x 27.35 mm
Weight 30 g
Temperature (Operating) -10° to 55°C
Temperature (Storage) -30° to 60°C
Conformity CE, FCC, RoHS, REACH, WEEE, GenICam, GigE Vision
Warranty 3 years


phoenix-phx004s.pdf - English datasheet
phoenix.pdf - English datasheet of Lucid Phoenix family
lucid-catalog-2018.pdf - English catalog of Lucid products
accessories.pdf - English datasheet of Lucid accessories
